Dovetail drawers
5/8" solid wood boxes with dovetail joints on full-extension soft-close glides.
Construction
Plywood Cabinet Construction, Part by Part
Every ECG cabinet uses the same plywood cabinet construction: a 1/2" premium-grade plywood box, 3/4" plywood shelves, solid wood dovetail drawers and soft-close hardware, in all four Shaker finishes.
Specifications
Cabinet Construction Specifications
Every part of the box, from the ECG Spec Book.
| Part | Specification |
|---|---|
| Frame | Solid hardwood construction |
| Back panel, wall cabinet | 1/2" premium-grade plywood |
| Back panel, base cabinet | 1/2" premium-grade plywood |
| End panels | 1/2" premium-grade plywood |
| Shelves | 3/4" premium-grade plywood, adjustable |
| Interior finish | Natural birch veneer |
| Hinges | 6-way adjustable concealed, soft-close |
| Drawers | 5/8" solid wood, dovetail joinery |
| Glides | Concealed undermount, full-extension, integrated soft-close |
| Base frame | 3/4" kiln-dried hardwood, 1-1/2" wide, glued and nailed under clamp pressure |
| Door | Full overlay, 5-piece solid wood with engineered center panel |
| Toe kick | 4" toe kick; 1/2" x 4" x 96" toe kick strip (TK8) |
Up close
The Details Clients Notice
Three details that separate a plywood cabinet from builder-grade boxes.

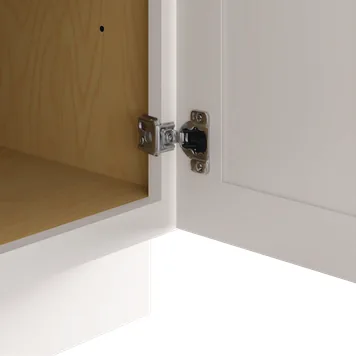

Soft-close hinges
Concealed hinges that adjust in six directions to align doors on site.

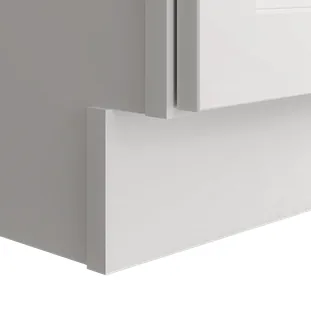

Hardwood face frame
A solid hardwood frame behind a full overlay 5-piece solid wood door.
Plywood vs particleboard
Why a Plywood Box Matters on the Jobsite
Plywood is built from cross-laminated wood layers, which gives it strength and screw-holding power. That matters when cabinets are shipped, installed and loaded with dishes for years.
| Factor | Plywood (ECG) | Particleboard |
|---|---|---|
| Material | Cross-laminated wood veneers | Compressed wood particles and resin |
| Screw holding | Strong, holds after re-tightening | Weaker, can strip |
| Water exposure | More tolerant of a leak | Swells when wet |
FAQ
Cabinet Construction Questions
Are ECG cabinet boxes plywood or particleboard?
Plywood. Sides, backs and the box are 1/2" premium-grade plywood, and adjustable shelves are 3/4" plywood.
What kind of drawers do ECG cabinets have?
5/8" solid wood drawer boxes with dovetail joinery, on concealed undermount full-extension glides with integrated soft-close.
Are the doors solid wood?
Doors are 5-piece solid wood with an engineered center panel, on a solid hardwood frame 2.5" wide.
Is construction the same for RTA and assembled?
Yes. RTA and assembled cabinets use the same box, door, drawer and hardware.
